Electrician in Waterloo, Ontario

Waterloo's wiring is as mixed as its housing. The older streets uptown and through Mary-Allen and around Westmount still have a share of knob-and-tube behind the plaster and 60-amp fuse services that insurers are no longer comfortable with. Lakeshore, Beechwood and Lincoln Village went up through the 1970s, which puts them squarely in the years when aluminum branch wiring was common, and a lot of it is still in the walls. The 1990s-and-later subdivisions in Laurelwood, Columbia Forest and Vista Hills are wired fine for the house they were, but a full panel and a two-car garage with no spare circuit is where the EV charger conversation starts. Then there is the university district: Northdale, the streets off Columbia and University Avenue, and the basement units behind them, where landlords get asked for an ESA inspection and cannot always find someone to do one. This is the booking line for one vetted electrical contractor who works across all of it. The contractor holds the Ontario licence the trade requires, files the ESA notification on the work, and quotes in writing after looking at the panel and the wiring rather than off a photo.

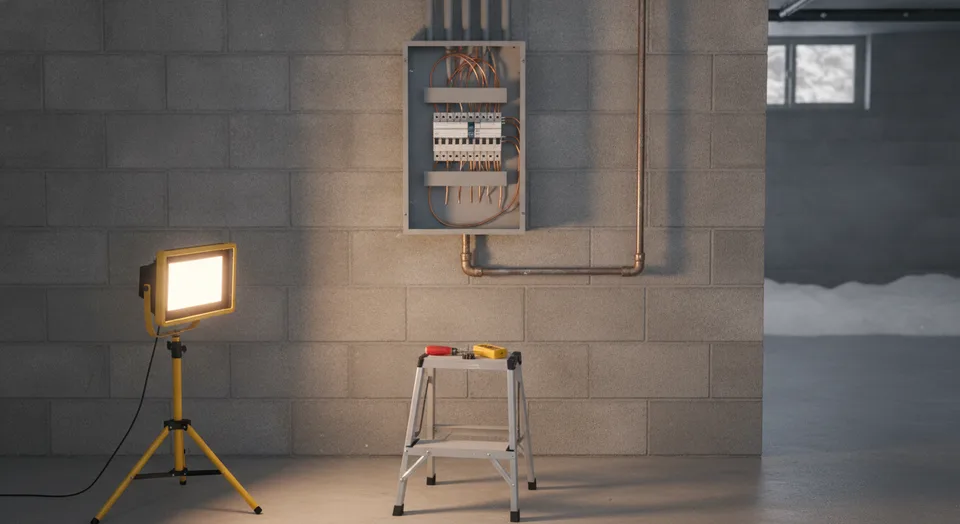

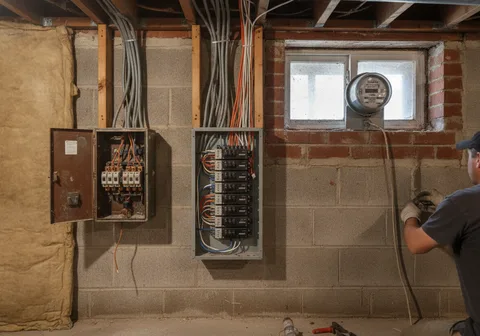

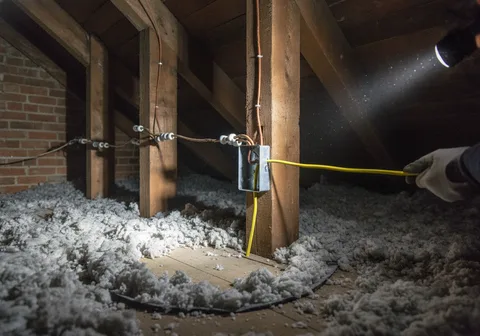

Uptown, Mary-Allen and the older streets: knob-and-tube and 60-amp services. The houses between uptown and the Kitchener line, through Mary-Allen and up toward Westmount, are mostly pre-war brick and frame. A lot of them have been rewired at least partly, but partly is the problem. It is common to open a ceiling and find knob-and-tube still feeding the lights while the receptacles below run on newer cable, spliced together somewhere in the attic or above a plaster ceiling. Insurance companies increasingly ask whether knob-and-tube is present and some will not write a new policy until it is gone or assessed, which is how most owners find out they have it. The service is the other issue. A 60-amp fuse panel was fine for the house as built; it is not fine for a house with central air, an electric range, a dryer and an ensuite with a heated floor. The conversation on these streets is usually a service and panel upgrade plus a plan for the old wiring, done in an order that does not leave the house dark. If the house is designated under the Ontario Heritage Act, the City of Waterloo can tell you whether any exterior changes to the mast or meter base need a look first.

Lakeshore, Beechwood and Lincoln Village: the aluminum-wiring years. Waterloo grew fast through the late 1960s and 1970s, and the subdivisions from that stretch — Lakeshore north of Northfield, Beechwood off Fischer-Hallman, Lincoln Village east of Weber — were built when aluminum branch wiring was a normal, approved choice. It is still in a great many of those houses. Aluminum is not a reason to panic. It expands and contracts more than copper and it oxidizes, so the risk is at the connections: a receptacle that runs warm, a light switch that crackles, a breaker that trips for no reason. The fix is at those terminations, with devices rated for aluminum or properly made copper pigtails, and it is priced by counting the devices in the house rather than by guessing. The panels from that era are also at the age where some brands have known problems and insurers ask about them, and the 100-amp service that was generous in 1974 is tight for a house that has since added air conditioning, a hot tub and a second fridge in the garage.

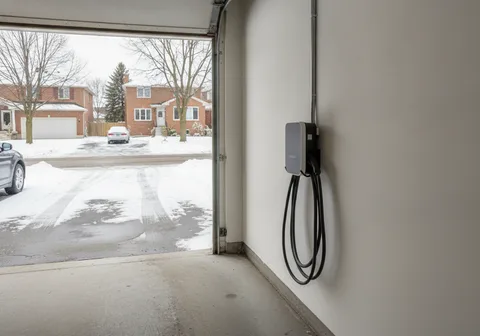

Laurelwood, Columbia Forest and Vista Hills: full panels and EV chargers. The newer west-side neighbourhoods were wired to the code of their day, with copper, a 100- or 200-amp service, and a panel the builder filled to about the last slot. The request here is almost always an addition: a Level 2 EV charger in the garage, a hot tub, a basement finished into a second unit, a heat pump replacing the gas furnace. Each of those is a large new load, and whether the existing service can carry it is a load calculation, not an opinion. Sometimes the answer is a straightforward 40- or 50-amp circuit to the garage. Sometimes it is a subpanel. Sometimes the honest answer is that a 100-amp service in a house that now has two EVs and a heat pump needs to become 200 amps, and that involves the local utility, Enova Power (the successor to Waterloo North Hydro), on the service side as well as ESA on the inspection side. The quote says which one you are looking at before anything is ordered.

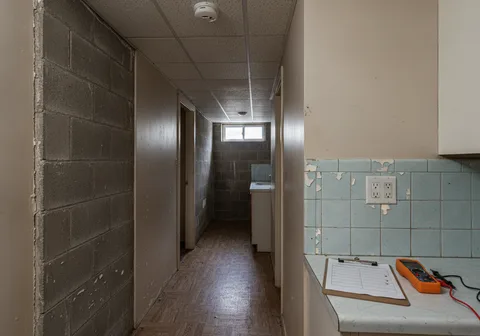

The university district and basement apartments: what landlords get asked for. Northdale, the streets off Columbia, Albert and University Avenue, and the older houses on the Laurier side of uptown carry a huge share of Waterloo's student housing, and much of it has been altered over the years: basements split into rooms, extra kitchens, receptacles added by whoever was handy. The City of Waterloo runs a rental housing licensing program, and depending on the class of licence and the age of the house, landlords can be asked for an electrical safety certificate from the Electrical Safety Authority. An ESA general inspection is what produces it, and the inspector will want the obvious things fixed first: open junction boxes, missing cover plates, double-tapped breakers, extension cords standing in for circuits, and any knob-and-tube or aluminum issues in the unit. The useful order is a walk-through by the contractor, a written list of what will fail, the repairs, and then the inspection. Doing it the other way round costs a second inspection fee and a month.

How the booking works, and what we ask you. You call or send the form. Useful details: the street or neighbourhood, roughly when the house was built, what you want done, whether the panel is breakers or fuses, whether anyone has mentioned knob-and-tube or aluminum, and whether it is your home or a rental. A photo of the panel with the cover on is genuinely helpful. Then the contractor comes out and looks at the panel, the service, and the wiring in the area that matters. You get a written quote that says which work needs an ESA notification, whether the utility is involved, and how long the power will be off. The notification is filed by the contractor under their own licence, and the ESA inspection is part of the job, not something you chase afterwards.
